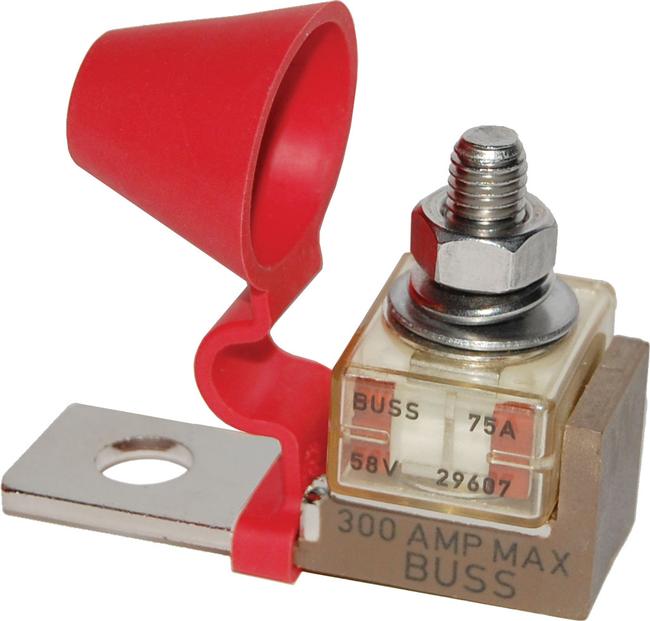

Blue Sea MRBF Terminal Fuse Block (5191)
Ref. N°: 325/1300
$36.95
Ref. N°: 325/1300
Blue Sea MRBF Terminal Fuse Block (5191)
$36.95
- Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts
- Accepts 5/16" ring terminals
- Mounts on 3/8” terminal studs
- Fuse sold separately
| Specifications | |
|---|---|
Ignition Protected  |
No |
| Maximum Amperage |
300A |
| Maximum Voltage | 58V DC |
| Terminal Stud | M8 (5/16") |
| Maximum Torque | 75 in-lb (8.47 Nm) |
| Weight | 0.16lb (0.07 kg) |
