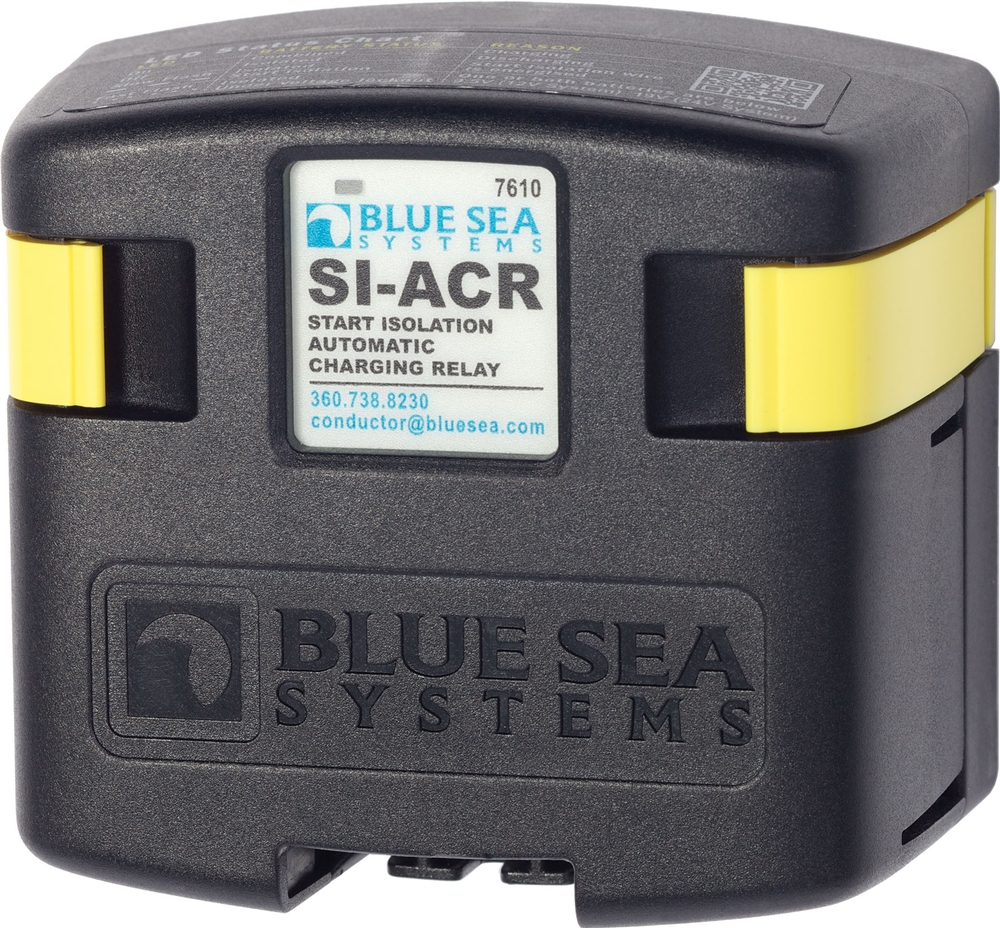

Blue Sea Automatic Charging Relay (7610)
Ref. N°: 325/5100
$159.95
Ref. N°: 325/5100
Blue Sea Automatic Charging Relay (7610)
$159.95
* Prices are in Canadian dollars. Taxes and shipping not included.
Automatically combines batteries during charging, isolates batteries when discharging and when starting engines
- Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
- Designed for 12 or 24 volt systems
- 12/24 volt auto ranging voltage input
- Hermetically sealed contacts/vaporproof
- Ignition protected—safe for installation aboard gasoline powered boats
- Supports high-output alternators up to 120 Amperes
- Dual sensing
Specifications | |
---|---|
Nominal Voltage | 12V DC 24V DC |
Start Isolation | Yes |
Amperage Operating Current | 175mA (combined) 15mA (open) |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 120A |
Intermittent Rating | 210A (5 min) |
Cable Size to Meet Ratings | 1/0 AWG |
Stud Material | Tinned Copper |
Terminal Ring Diameter Clearance | 1.12in (28.45 mm) |
Terminal Stud Length | 0.875in (22.23 mm) |
Terminal Stud Size | 3/8" - 16 (M10) |
