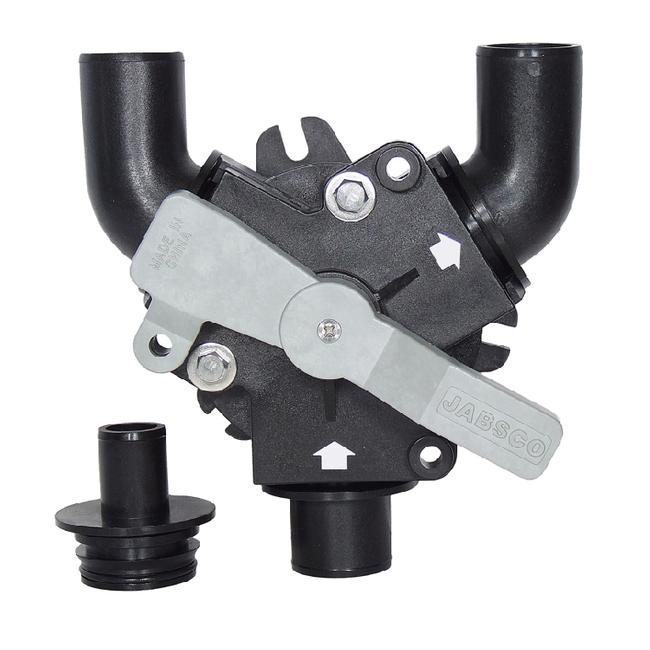

Radial Y-Valve for Waste Tanks-Jabsco

Radial Y-Valve for Waste Tanks-Jabsco

• Connections: - for 38mm (1½“) bore hose or 25 mm(1“) adaptor
• Dimensions: - 180mm long, 120mm high
• Allows alternative routes for toilet discharge or toilet waste pump-out: – toilet discharge overboard (at sea) or to waste holding tank – waste holding tank discharge via onboard pump or shore pump-out
• Manual lever action with lockable lever (lock not included)
• Corrosion-resistant polymer and stainless steel construction
• Rotatable ports

Note: Check local regulations before installing an external toilet output. It is prohibited on many waterways to discharge waste holding tank overboard.
